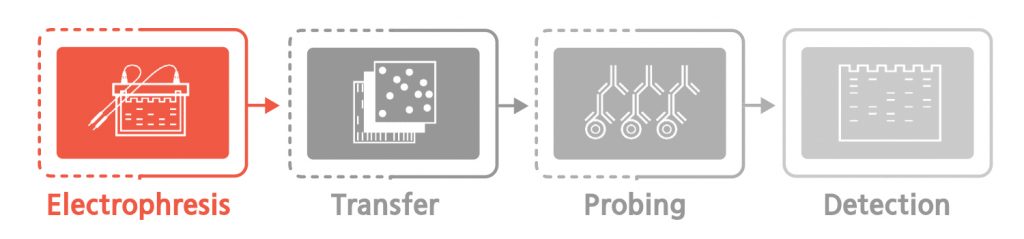

Cytiva Amersham™ Western Blotting Workflow Electrophoresis 제품 소개
Western Blotting 장치

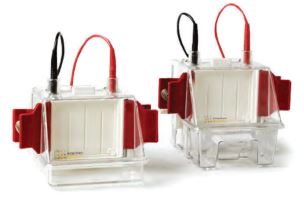

SE250/260 전기영동장치 (*스테디셀러)
• 발연성 높은 Alumina plates를 사용하여 선명한 밴드를 얻을 수 있음
• Mini-gel 2장을 동시에 전기영동 가능
|
SE250 complete kit |
SE260 complete kit |
품번 |
SE260-10A-.75 |
SE260-10A-.75 |
Glass plate size (WxH) |
10cm x 8cm |
10cm x 10.5cm |
Maximum power setting |
500V, 500mA, 12W |
Power supply |
EPS301 power supply (#18113001) |
EPS301 power supply (#18113001)
• SE250/260 전기영동장치와 호환
• Voltage : 5~300V
• Current : 10~400mA
• Time : 1분~24시간
TE22 mini tank transfer unit(#TE22)
• Mini-gel (~9 x 10cm) 4장을 동시에 transfer
• Built-in alumina heat exchange를 통해서 transfer temparature 조절
• Power supply PS300B(Hoefer) 호환
ECL semi-dry blotters
• Semi-dry 방식으로 버퍼 사용량, 실험 시간을 줄임
• Built-in power supply로 작은 설치 공간
• TE70 PWR : 14 x 16cm(mini-gel 2장)
• TE77 PWR : 21 x 26cm (mini-gel 4장)
품명 |
품번 |
TE70 PWR semi-dry transfer unit, 14 x 16cm |
11001341 |
TE77 PWR semi-dry transfer unit, 21 x 26cm |
11001342 |

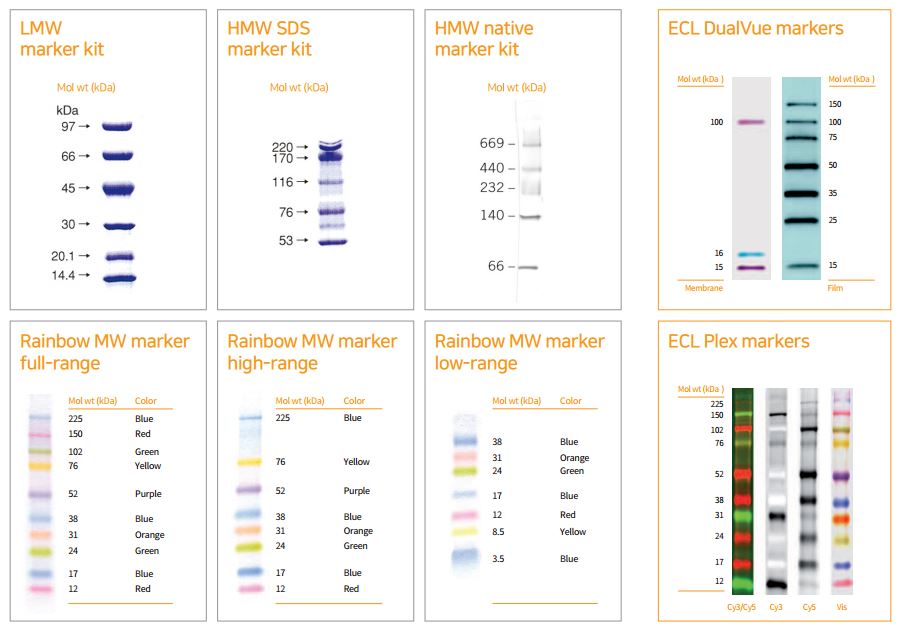

Markers ( Amersham protein electrophoresis )
품명 |
품번 |
MW range (kDa) |
용량 |
Visualization |
LMW marker kit |
17044601 |
14.4 ~ 97.0 |
10 x 576 μg/vial |
Gel staining 필요 (CBB, silver stain, fluorescent stain) |
HMW SDS marker kit |
17061501 |
53.0 ~ 220 |
10 x 175 μg/vial |
HMW native marker kit |
17044501 |
66.0 ~ 669 |
10 x 250 μg/vial |
Amersham western blotting detection
품명 |
품번 |
MW range (kDa) |
용량 |
Visualization |
Rainbow molecular weight markers |
RPN800E |
Full, 12 ~ 225 |
250 μL |
Visible, multicolor |
RPN756E |
High, 12 ~ 225 |
RPN755E |
Low, 3.5 ~ 38 |
ECL DualVue western blotting markers |
RPN810 |
15 ~ 150 (Visible-15, 16, 100 kDa) |
215 μL |
Chemiluminescent,Visible |
ECL Plex fluorescent rainbow markers |
RPN850E |
12 ~ 225 |
120 μL |
Fluorescent, visible, multicolor |
| RPN851E |
500 μL |
|
